文章简介：干式喷漆台，汽车喷漆房之排气系统，减少对环境的污染，环保。

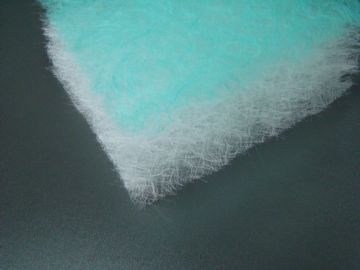

玻璃纤维棉(地棉,漆雾毡,阻漆网,玻璃丝)
产品特性
•采用玻璃长纤维以非织物方式制成, ,透风量大,其阻力小,对漆雾Over-spray捕尘效率佳。
•应用于表面喷涂高质量漆雾过滤；捕捉率高PA-50/60/PA-100尤其适合应用开热回收系统；
•高强度的玻璃纤维递增结构；迎风面为绿色，出风面为白色。
•低压缩性能保持其外型不变，使其过滤纤维完全有利于储存油雾灰尘。
•难燃性,可耐温170℃。
•压缩包装在运输上可节省运费及储存空间，放松后仍可恢复原来状态。
•外框搭配可选择纸外框和镀锌铁框或铝合金框材质。
用途
一般空调系统之粗尘过滤
干式喷漆台，汽车喷漆房之排气系统，减少对环境的污染，环保。
性能参数
型号 Model PA-50/60 PA-100
捕集效率 Avg.arrestance(acc.EN779) 92%-96% 97%-99%
初期压损Initial pessure drop 15Pa 20Pa
最终压损Final pessure drop 250Pa 280Pa
风流量 Air velocity 0.7-1.75m/s 0.7-1.75m/s
容尘量 Dust holding at tested final 3200-3600 g/┫ 3600-4900g/┫
最高耐温Temp.resistance,const 170℃ 170℃
瞬间温度Temp.short peaks 190℃ 190℃
厚度 Normal thickness 50/60mm 100mm
标准尺寸（M）Roll sizes standard 0.8*20 1.0*20 2.0*20 0.8*20 1.0*20 2.0*20
注：可成卷供应或裁剪
其它规格尺寸及厚度均可根据客户要求定做
Fibreglass filter media
Speciality:
Made of long fibreglass in non-woven way,large ventilation quantity,small resistance, good efficiency of the dust arrestance for the over-spray.
It is applied to the superficial spray coating high quality painting-spray filtration, high dust catching, specially , PA-50/60/PA-100 is suitable for using heat recovery system
High strength fibreglass increasing structure; the windward side is green ,the leeward side is white.。
The low compression performance maintains its outlook，which is completely useful for the filtration fibre to keep the oil mist and the dust
Nonflammability, heat resistance 170℃
The compression packing may save the fare and the storage space in the transportation.After decompression, it will regain its original condition
Outer frame may choose the paper frame , the galvanization iron frame,or aluminium alloy frame.
Using:
Thick dust filtration for the general air-condition system.
Applied to the dry spray painting platform and the exhaust gas system of the automobile spray painting room.It is environment-friendly, reducing the pollution to the environment
Remark:
Wide variety of sizes and thickness
